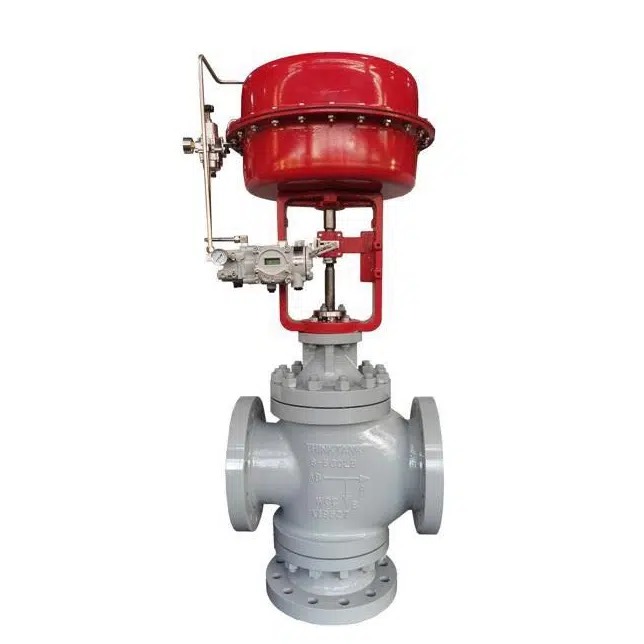

Pneumatic Diverting Type Control Valves
Pneumatic Diverting Type Control Valves
Pneumatic diverting type control valves has one inlet port and two outlet flow port. The actuator employed is of a multi-spring type and has a small-sized, high-output diaphragm motor with an extremely simplified operating mechanism. It is used for the heat control of heat converters, etc. The valve model HDT is a three-way control valve for diverting service. It has a small-sized, high output diaphragm motor which is suitable for big port and high differential pressure services.
Size:
3/4' ~ 14'
ANSI Class:
150 ~ 600LB
Body Materials:
Carbon Steel, Stainless Steel
Temperature Range:
-196 ~ +450°C
Description
SPECIFICATIONS
Body Type
Three-way cast globe valve
Nominal size
3/4’’, 1’’, 1-1/4’’, 1-1/2’’, 2’’, 2-1/2’’, 3’’, 4’’, 5’’, 6’’, 8’’, 10’’, 12’’, 14’’
Pressure rating
• ANSI Class 125, 150, 300, 600
• JIS 10K, 16K, 20K, 30K, 40K
• PN1.6, 4.0, 6.4, 10.0 Mpa
End connection
• Flanged End: FF, RF, RJ, LG
According to ANSI B16.5, JIS B2201, JB/T79.1, PN1.6MPa, JB/T79.2
• Welded End: SW, BW
Material
A216 WCB, A216WC6, A352 LCB, A351 CF8, A351CF8M, A351 CF3M, A351 CF3
Bonnet
• Plain bonnet (-17 to 230°C)
• Extension bonnet(-60 to -29 ℃ or over 230°C)
