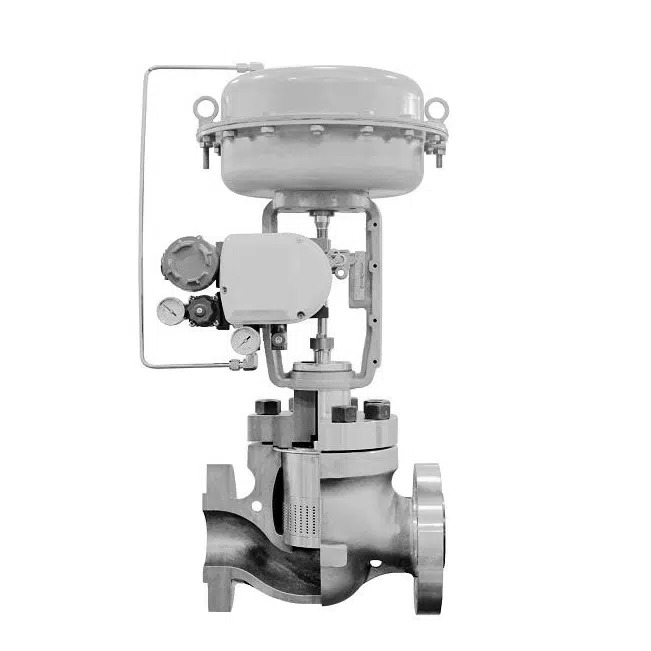

Pneumtiac Multi-Hole Type Globe Control Valve
Pneumtiac Multi-Hole Type Globe Control Valve
The core advantage of the multi-hole type globe control valve is that the multi-hole cage has a very large noise reduction function, which is especially suitable for steam venting occasions.
Size:
1' ~ 24'
ANSI Class:
150 ~ 2500LB
Body Materials:
A216 WCB, A216WC6, A352 LCB, A351 CF8, A351 CF8M, A351 CF3M, A351 CF3
Temperature Range:
-196 ~ +550°C
Description
Product Advantages
The rapid flow rate of the medium with a large drop pressure will cause serious erosion damage to the valve trim, and also generate a lot of noise. The multi-hole type control valves solves this problem well. The general flow direction of the liquid is from the high to the low point of the valve. Through the multi-hole cage, the medium collides inside the sleeve and consumes internal energy to reduce the flow rate. For gaseous media, low inlet and high outlet are generally used. After the gaseous media passes through the multi-hole cage, there is a volume expansion behind the valve seat, thereby reducing the pressure of the media and reducing the flow rate.
The multi-hole type globe control valve can be interchanged with the cage of an ordinary cage-guided control valve, and other parts can be used in common, which can greatly shorten the delivery time while optimizing resources and reducing inventory.
