DIN Lift Check Valve
.jpg)

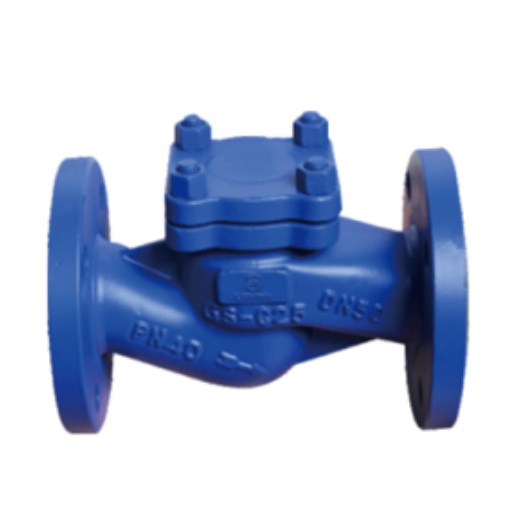

DIN Lift Check Valve
A lift check valve is an automatic sealing valve, the body relies on the flow of media and automatically switches the valve flap, effectively preventing the backward flow of media. The valve flap has stainless steel spring device, and the valve can be installed horizontally and vertically. The product has a reliable structure, excellent sealing, and long service life.
Description
What is DIN Lift Check Valve
The DIN lift check valve operates through the vertical movement of a disc or piston within the valve body. When fluid flows in the intended direction, the pressure of the fluid lifts the disc, allowing flow to pass through. If the flow reverses, the disc moves back down and seals against a seat, stopping the backflow.
DIN lift check valves are commonly used in various industries, including water, wastewater, oil and gas, and chemical processing. These valves come in a range of sizes, materials, and pressure ratings, as specified by the DIN standards. The DIN standards ensure that the components are compatible, interchangeable, and meet the required performance criteria for their intended applications.
Technical specifications
Design standard: DIN EN 13709:2003
Face to face dimension: DIN EN 558-1:1995
Flanged ends: DIN EN 1092-1:2002
Welded ends: DIN EN 12627
Test & inspection: DIN EN 12266:2003
